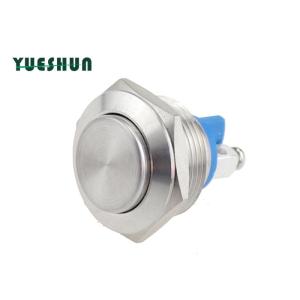

Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head

Name: Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS19H-10/S

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Max. Current : 2A

Max. Voltage : 36V DC

Color : Silver

Body Material : Stainless Steel

Head shape : High Round Head

Warranty Period : One Year

Contact Now

Stainless Steel 19mm High head Anti Vandal Push Button Switch Normal Open Momentary Car switch

Product Description

- Anti-vandal Push Button Switch can be applied to car motorcycle modificine ,electric equipment ,appliance,machine , home Lamps and so on, whcich is durable and decent.
- Momentary Waterproof push button switches are made of 304 Stainless Steelor Nickel Plated Brass.
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .

Product Specification

Model Number	JS19H-10/S
Mounting Hole	19mm
Max.Switch Rating	Ith:2A Ui:36V DC
Material	Body Material: Stainless Steel
	Button Material: Stainless Steel
	Contact Material: Silver Alloy
	Base Material: PBT
The Front Shape	High Round Head
Terminal Type	Screw Termlmal
Switch Operation	Momentary
Contact Configuration	Normal Open or Normal Closed all can be customized.
Mounting panel thickness	1-6 mm
Operation Distance	About 1.5 mm
Protection Level	IP65
Operating Temp	-20℃～+55℃
Mechanical life:	More than1,000,000 cycles
Electrical life:	More than 200,000 cycles

Size

Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head
